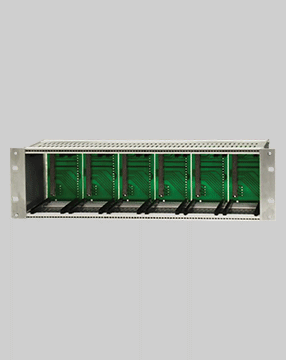

Type 1: 19″- built-in rack DIN 41494

For the AGD01-Tlx, 19″- built-in-rack is provided from one to six plug-in units (14HP). The wiring connection can be easily done via screw terminals from the back side. Type of protection is IP20.

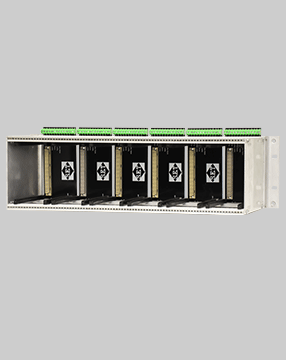

Type 2: 19″- built-on rack DIN 41494

For the AGD01-Tlx, 19″- built-in-rack is provided from one to six plug-in units (14HP). The wiring connection can be easily done via screw terminals from the back side. Type of protection is IP20.

Type 3: 19″- built-in rack DIN 41494

For the AGD01-Tly, 19″- built-in-rack is provided from one to seven plug-in units (12HP). The wiring connection can be easily done via screw terminals from the back side. Type of protection is IP20.

Type 4: 19″- built-in rack DIN 41494

For the AGD01-DU, 19″- built-in-rack is provided from one to four plug-in units (21HP). The wiring connection can be easily done via screw terminals from the back side. Type of protection is IP20.

Subrack ordering table
