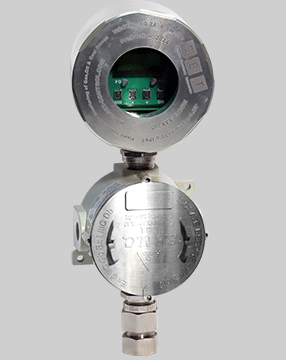

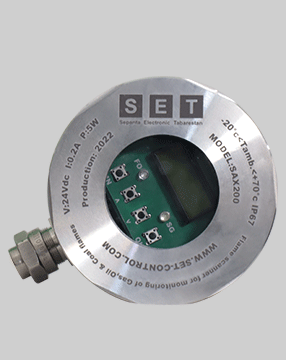

The digital flame detector analyses flame UV-VIS and IR radiation, using a microprocessor. The spectral ranges are detected by a solid state photodetector. The existence of a flame is determined by the amount of the flame flickering. Parameters of the flame monitor can be transmitted to a PC via a Isolated RS485 interface.
|
Feature |
Suitable for fules |
Flame Sensor |
||||
|
H2S |
WOOD |
COAL |
OIL |
GAS |
||
|
IR photo diode, combustion chamber flame monitoring. Ideal for monitoring gas and oil burners which have insufficient UV radiation caused by NOx reducing methods |
** | * | * |
** |
SAx-200-S21Cx2 |
|
|
UV photo diode, selective monitoring of a single burner of oil and gas flames in multi burners chamber with low NOx combustion |
* | ** |
* |
SAx-200-S22Cx2 |
||
|
Visible photo diode, combustion chamber flame monitoring (coal, oil) |
* | ** | * |
* |
SAx-200-S23Cx2 |
|
|
UV lamp, monitoring of gas and oil flames |
* |
** |
SAx-200-S18Cx2 |
|||
** ideally suited * well suited
|
SAx200-S??CX2 |
|||
| 1″ internal thread | Sighting tube connection | 6 | Viewing |
| approximate 2.5 kg | Weight (Scanner) | 24 V DC | Operating voltage |
| -20 … +70°C | Temperature range | Max 170mA | Current Consumption |
| 40…020mA | Analogue output | IP67, Ex db IIC | Protection Class |
| RS485 | Serial Chamber | SPDT (115 VAC, 0.5A) | Flame relay |
| 1, 2, 3, 3, 4, 5, 6 S | Safety | SPST (115 VAC, 0.5A) | Ready relay |
