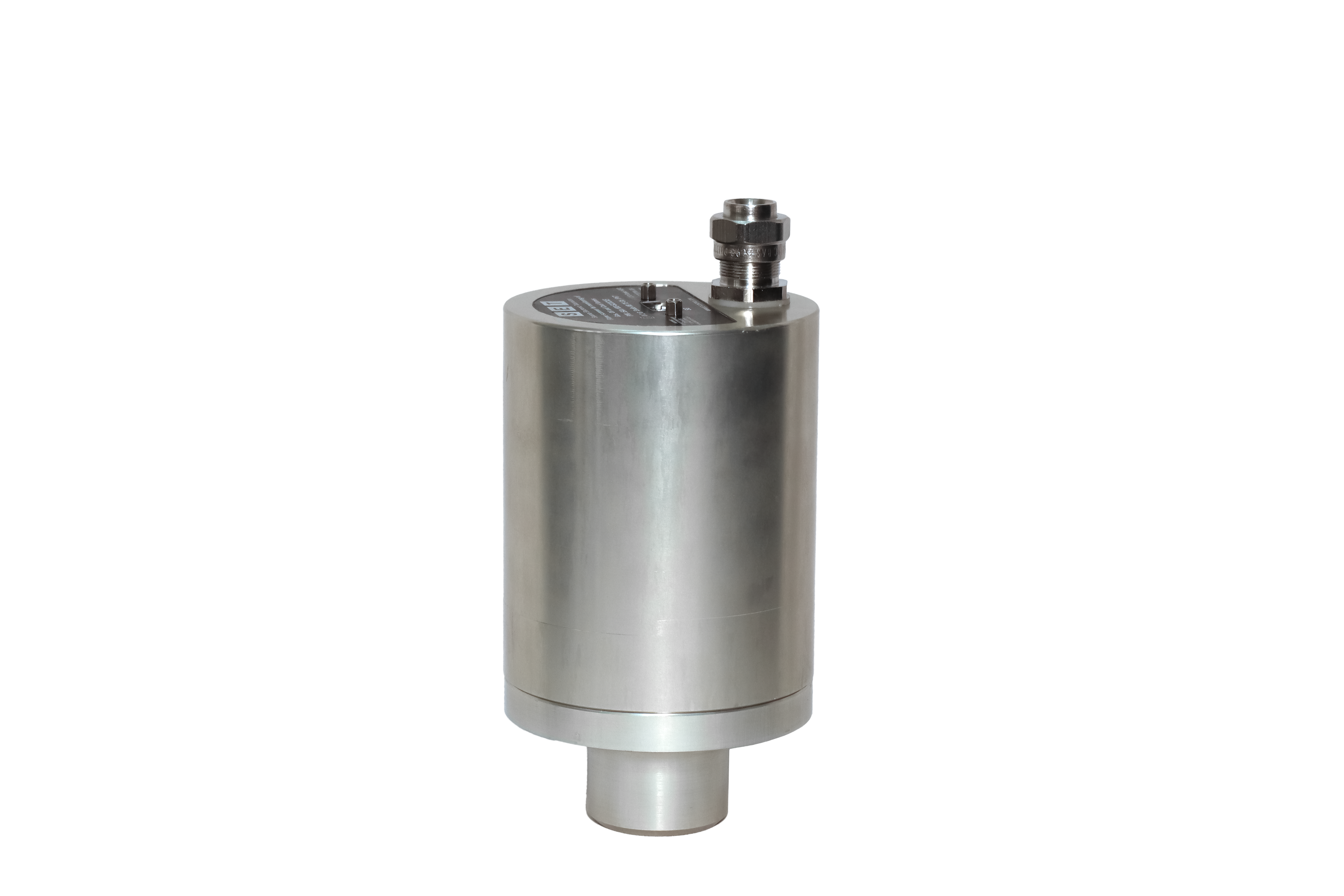

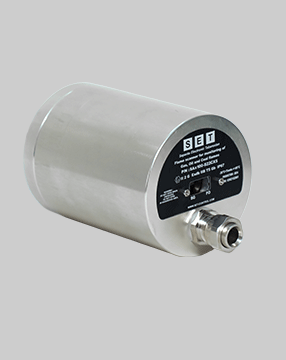

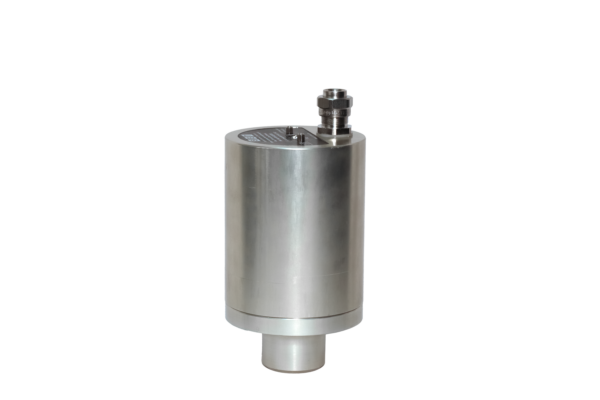

The digital flame scanner analyzes flames UV, VIS or IR radiation, using a microprocessor. The spectral ranges are detected by a solid-state photodetector or UV lamp.
An IrDA/USB is provided to communicate with the computer for setting the scanner parameters and also monitoring the flame characteristics. Also, a switch-over for the set parameters of scanner (intensity and on/off threshold) is possible.
|
Feature |
Suitable for fuels | Flame sensor | ||||
| H2S | WOOD | COAL | OIL |
GAS |
||
|
IR photo diode, combustion chamber flame monitoring gas and oil burners which have insufficient UV radiation caused by NOx reducing methods |
** |
* |
* |
** |
SAx-101-S21CX5 |
|
|
UV photo diode, selective monitoring of a single burner of oil and gas flames in multi burners chamber with low NOx combustion |
* |
** |
* |
SAx-101-S22CX5 |
||
|
Visible photo diode, combustion chamber flame monitoring (coal, oil) |
* |
** |
* |
* |
SAx-101-S23CX5 |
|
| UV lamp, highly sensitive and selective monitoring of gas and oil flames | * | ** |
SAx-101-S18CX5 |
|||
|
SAx101-S??C?? |
|||
|
1″ internal thread |
Sighting tube connection | 6° |
Viewing angle |
|
Approximate 2.5 kg |
Weight (Scanner) | 24 VDC (or 110 … 230 V AC) |
Power supply |
|
-20 … +70°C |
Temperature range |
Max 170mA @24V DC |
Current consumption |
|
(0)4 … 20mA |
Analogue output |
IP67, Ex db llc |
Protection class |
| IrDA/USB | Serial channel | SPDT (115 VAC, 0.5A) |
Flame relay |
|
1, 2, 3, 4, 5, 6 S |
Safety time |
+24V |
Switch over |
