The AGD01 flame monitor analyses and displays the flame features which are sensed by flame sensor unit. The easy-to-read LCD display continually shows information on the defined setting and operational status. The flame intensity is present at a current output 4 … 20 mA for further analysis. There are three types of monitors. These monitor units can connect to AGD01 flame sensor unit. Parameters of the flame monitor can be transmitted to a PC via a isolated RS232 interface.
|

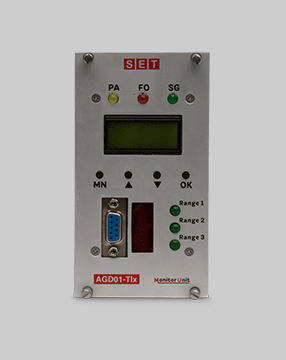

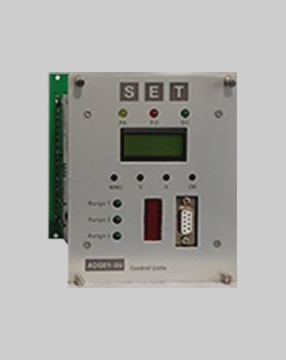

AGD01 monitor unit |
|||
| Tlx: 19″ plug-in module, 14 HP
Tly: 19″ plug-in module, 12 HP DU: 19″ plug-in module, 21 HP |
Dimension |
24 V DC (or 115 … 230 V AC) |
Operating voltage |
|
4 … 20 mA |
Analogue output1 |
Max 170mA ADC |
Current consumption |
|
4 … 20 mA (only AGD01-DU) |
Analogue output2 |
IP00 |
Protection class |
|
RS232 |
Serial channel |
-20 … +60°C |
Ambient temperature range |
|
1, 2, 3, 4, 5, 6 S |
Safety time |
SPDT (230 V AC, 2A) |
Flame relay |
|
10 … 100 |
Sensitivity level |
SPDT (230 V AC, 2A) |
Ready relay |
| Sensitivity, On/Off level and safety time with 2 input dry contact |
Configurable |
30 … 90 25 … 55 |
Flame on level Flame off level |
