The digital flame detector analyses flame IR radiation, using a microprocessor. Both spectral ranges are detected by a solid state photodetector.
Parameters of the flame monitor can be transmitted to a PC via a isolated RSS232 interface.
|

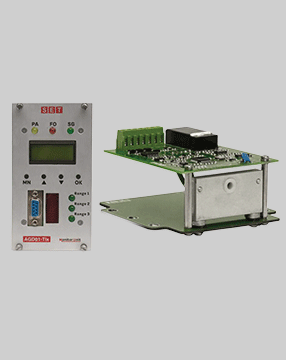

Monitor unit |

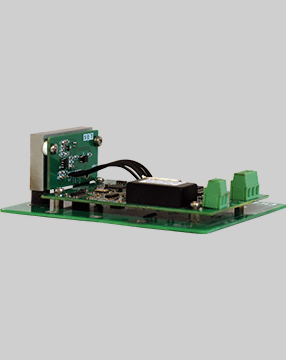

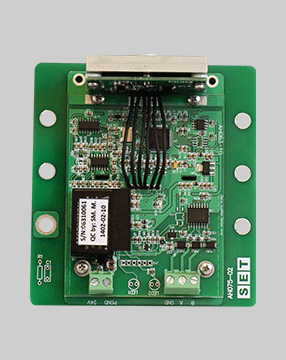

Sensor unit |
||
| 24 V DC, Max 120mA |
Operating voltage |
880 to 2600 nm |
Spectral sensitivity |
| -20 … +60°C |
Ambient temperature range |
24 V DC, inner electrical isolatin |
Operating voltage |
| IP00 |
Protection class |
Max 50mA |
Current consumption |
| SPDT (230 V AC, 2A) |
Flame relay |
IP00 |
Protection class |
| SPDT (230 V AC, 2A) |
Status relay |
-20 … +85°C |
Ambient temperature range |
| 1, 2, 3, 4, 5, 6 S |
Safety time |
Max 500m |
Length of cable |
| 30 … 90
25 … 55 |
Flame on level
Flame off level |
AGD01-S21CW |
Part number |
| Gain, On/Off threshold and safety time with 3 input dry contact | Configurable | ||
