SAx-100

Features

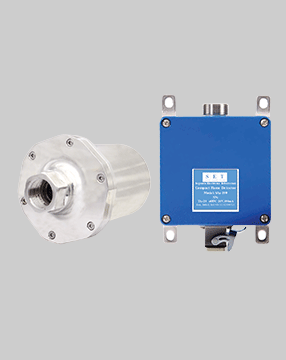

Compact design, flame sensor and flame analyzer unit in one enclosure
Wide sensitivity range
Ambient temperature from 20°C up to +85°C
Dual channel design throughout
Measurement of flame intensity
Measurement of flame flicker frequency
Measurement of flame brightness

Application

Power stations
Chemical industry
Refineries
Cement plants
Waste incinerators
Steam generators
Heating plants

0/5 (0 نظر)

در حال بارگذاری...

Flame scanner selection

The SAx-100 flame scanner analyses flame UV, VIS or IR radiation of a flame, using a digital processor. All spectral ranges are detected by a solid-state photodetector.

Parameters of the flame scanner can be transmitted to a PC via a isolated RS485 interface.

Flame scanner selection

Feature	Suitable for fuels					Flame sensor
Feature	H2S	WOOD	COAL	OIL	GAS	Flame sensor
	**		*	*	**	SAx-100-S21C??
			*	**	*	SAx-100-S22C??
		*	**	*	*	SAx-100-S23C??
			*		**	SAx-100-S18C??

**ideally suited *well suited

?? → X1: for Ex-housing, X3: for OE-converter-housing

Flame scanner features

SAx-100-S??C??
1″ internal thread	Sighting tube connection	6^o	Viewing angle
approximate 1.5 kg	Weight (scanner)	24 V DC (or 110 … 230 V AC)	Operating voltage
-20 … +85^oC (up to 300^oC with optimal fiber)	Ambient temperature range	Max 100 mA	Current consumption
RS485	Serial channel	X1: IP67, Ex db llC X3: IP66	Protection class
1 S	Safety time	SPDT (115 V AC, 0.5 A)	Flame relay
