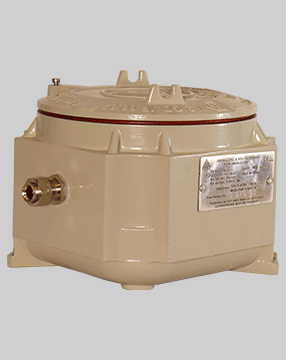

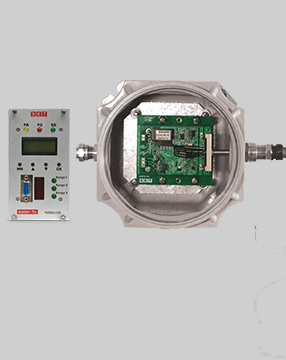

In the hot zone around the combustion chambers or burners, the high temperature combined with strong vibration and shortage of space, confronts the flame scanner designers with impossible barrier for connecting directly to the chambers or burners. In such cases, one of the most efficient solutions is to apply an appropriate “Fiber Optic Interface” between the connection point of chambers or burners to a safe and cool area with sufficient room. The light of flames are transferred over a glass fiber bundle, which is surrounded by a flexible protection hose. The digital flame detector analysis flame radiation, using a microprocessor. The spectral range are detected by a solid state photodetector. The existence of a flame is determined by the amount of the flame flickering.
| Feature | Suitable for fuels |
Flame sensor |
||||
| H2S | WOOD | COAL | OIL | GAS | ||
| IR photo diode, combustion chamber flame monitoring, ideal for monitoring gas and oil burners which have insufficient UV radiation caused by NOx reducing methods | ** | * | * | ** | AGD01-S21Cx4 | |
| UV photo diode, selective monitoring of a burner of oil and gas flames in multi burners chamber with low NOx | * | ** | * | AGD01-S22Cx4 | ||
| Visible photo diode, combustion chamber flame monitoring | * | ** | * | * | AGD01-S23Cx4 | |
|
Flexible optical fiber |
|||
|
1.5″ internal thread |
Sighting tube connection |
UV IR |
Spectral ranges |
|
-40 … +300°C |
Ambient temperature range |
6° |
Viewing angle |
|
AGD01-A3R124 |
|||
|
Max 170 mA DC |
Current consumtion |
24 V DC (or 115 … 230 V AC) |
Operating voltage |
|
4 … 20 mA |
Analogue output |
-20 … +60°C |
Ambient temperature range |
|
RS232 |
Serial channel |
SPDT (230 V AC, 0.5 A) |
Flame relay |
|
1, 2, 3, 4, 5, 6 S |
Safety time |
SPDT (230 V AC, 0.5 A) |
Ready relay |
